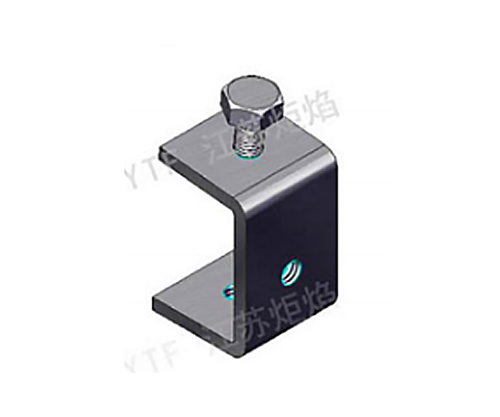

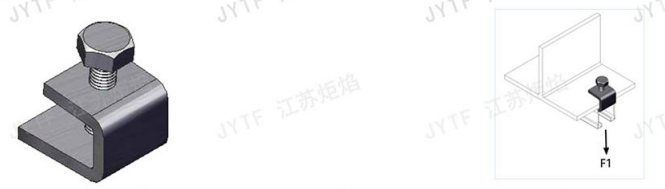

扣夹  Clip JYL-K-01A

特点

■用于槽钢在钢结构上的免焊接免钻孔安装;

■梁夹组件适用于多种标准的T型钢梁;

■材料:碳素钢,按照DNEN10025标准生产;镀锌工艺符合 ASTMA153 ；成品支架的标准镀锌层厚度为56μm;达克罗;环氧喷涂。

■应一对以上使用。

CHARACTERISTICS

■No soldering and drilling free installation of channel steel in steel structure.

■Beam clamp components are suitable for various kinds of standard T steel beams.

■Material: high quality carbon steel, according to DIN EN 10025 standard the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

■It should be used more than one pair.

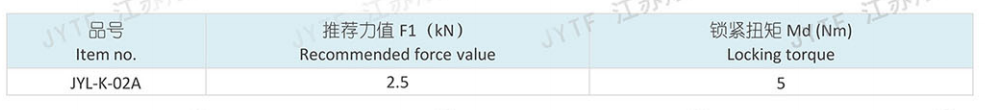

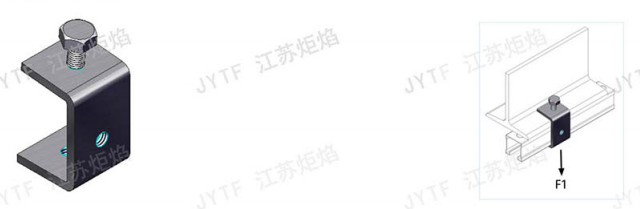

扣夹  Clip JYL-K-02A

特点

■用于槽钢在钢结构上的免焊接免钻孔安装;

■梁夹组件适用于多种标准的T型钢梁;

■材料:碳素钢,按照DNEN10025标准生产;镀锌工艺符合 ASTMA153标准镀锌层厚度为56μm;达克罗;环氧喷涂。

■应一对以上使用。

CHARACTERISTICS

■No soldering and drilling free installation of channel steel in steel structure.

■Beam clamp components are suitable for various kinds of standard T steel beams.

■Material: high quality carbon steel, according to DIN EN 10025 standard the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

■It should be used more than one pair.

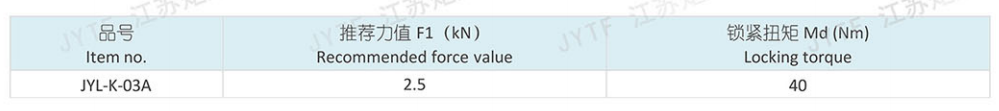

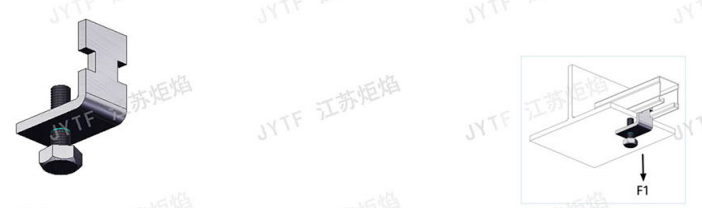

扣夹  Clip JYL-K-03A

特点

■用于槽钢在钢结构上的免焊接免钻孔安装;

■梁夹组件适用于多种标准的T型钢梁;

■材料:碳素钢,按照DNEN10025标准生产;镀锌工艺符合 ASTMA153标准镀锌层厚度为56μm;达克罗;环氧喷涂。

■应一对以上使用。

CHARACTERISTICS

■No soldering and drilling free installation of channel steel in steel structure.

■Beam clamp components are suitable for various kinds of standard T steel beams.

■Material: high quality carbon steel, according to DIN EN 10025 standard the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.

■It should be used more than one pair.

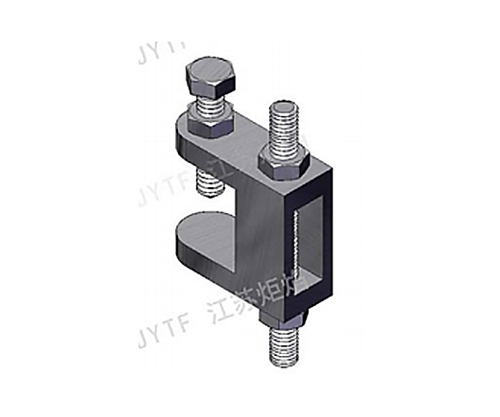

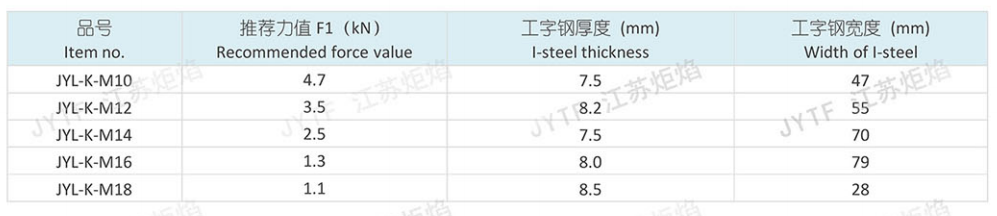

扣夹  Clip JYL-K-04A

特点

■用于槽钢在钢结构上的免焊接免钻孔安装;

■梁夹组件适用于多种标准的T型钢梁;

■材料:碳素钢,按照DNEN10025标准生产;镀锌工艺符合 ASTMA153标准镀锌层厚度为56μm;达克罗;环氧喷涂。

CHARACTERISTICS

■No soldering and drilling free installation of channel steel in steel structure.

■Beam clamp components are suitable for various kinds of standard T steel beams.

■Material: high quality carbon steel, according to DIN EN 10025 standard the galvanizing process conforms to the ASTM A153 standard, the thickness of the galvanized layer is 56um; dacromet; epoxy coating.
